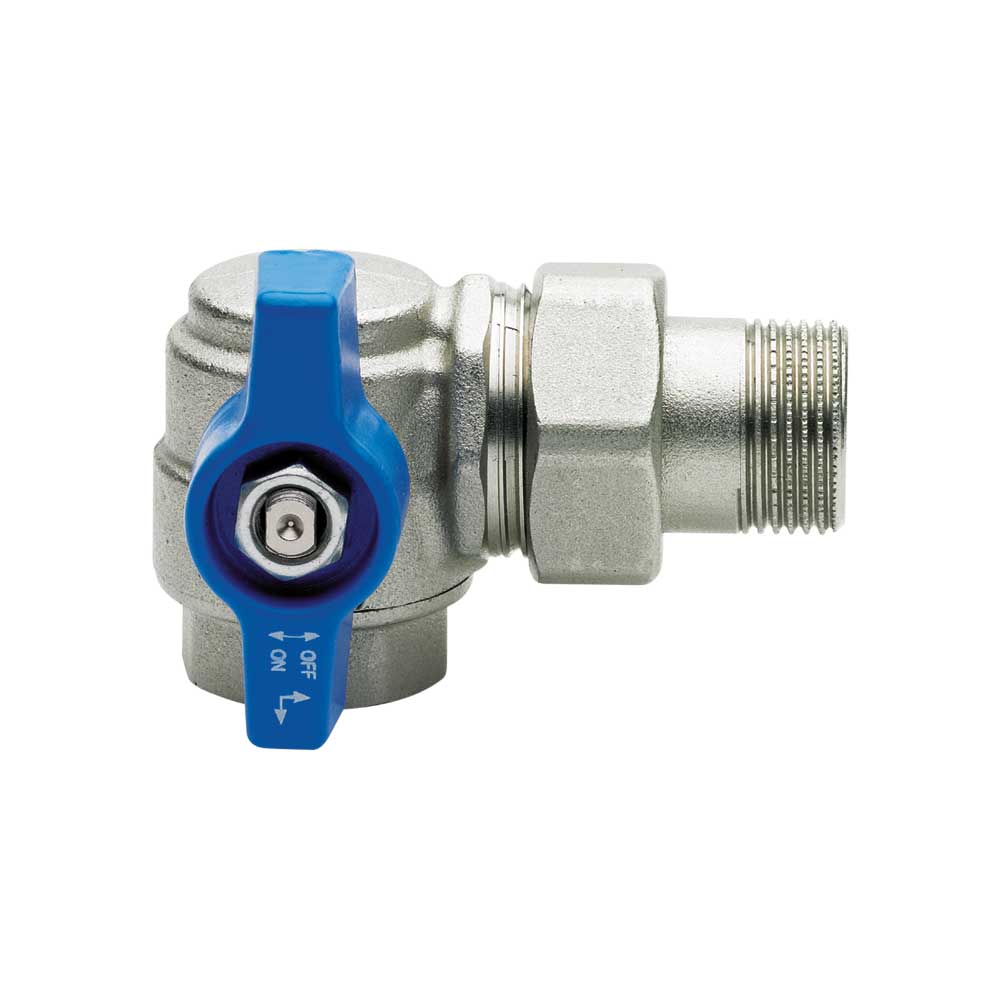

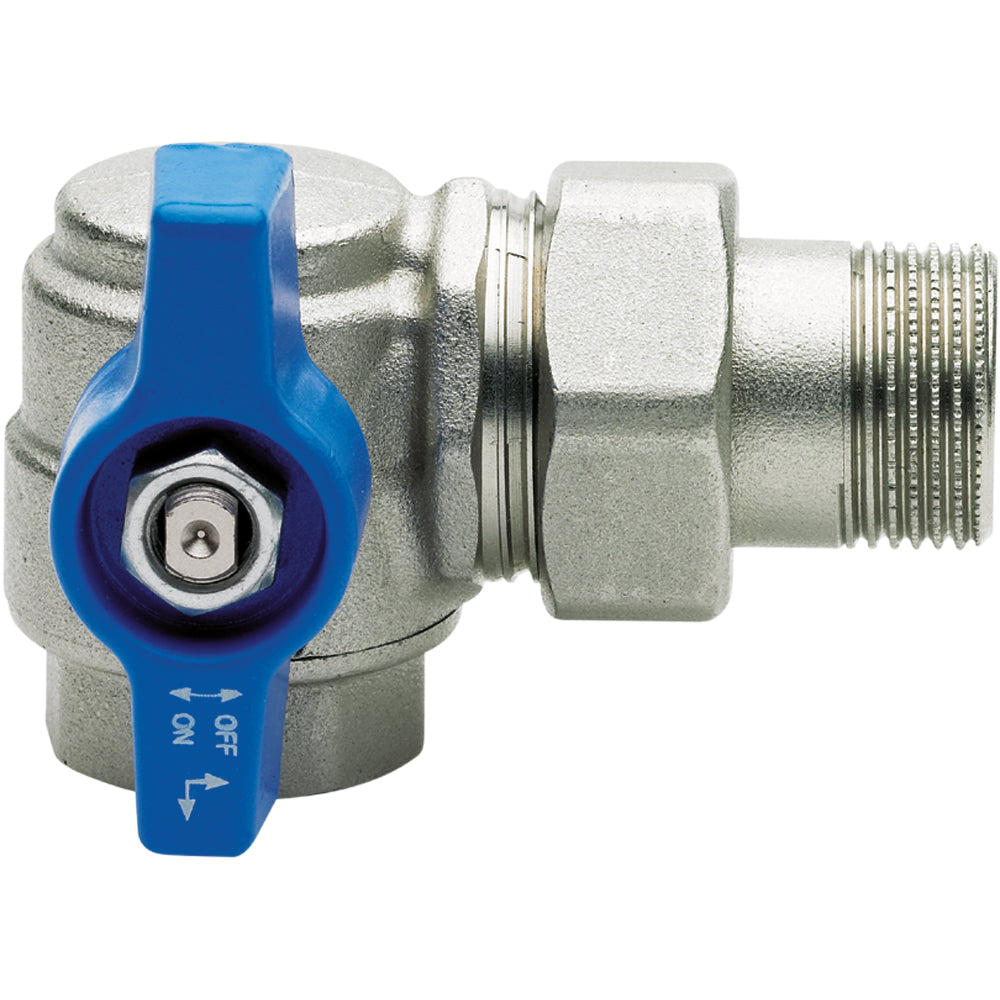

FULL BORE BALL VALVE, ANGLE PATTERN FOR MANIFOLDS WITH FRONT OUTLET RH
Available in stock (12)
Full bore ball valve.
The SPACE valve is suitable for manifold batteries in heating systems.
Threaded ends: - female according to ISO 228/1. - shank and swivel nut (metal seal + O-ring).
Operating devices: blue aluminum butterfly handle.
The flow direction is also indicated by the marking on the operating stem.
All valves comply with Directive 97/23/EC and are 100% tested with electronically controlled pneumatic sealing tests.
TEMPERATURE LIMITS from -15°C to +90°C.
PRESSURE LIMITS from 40 to 10 bar.

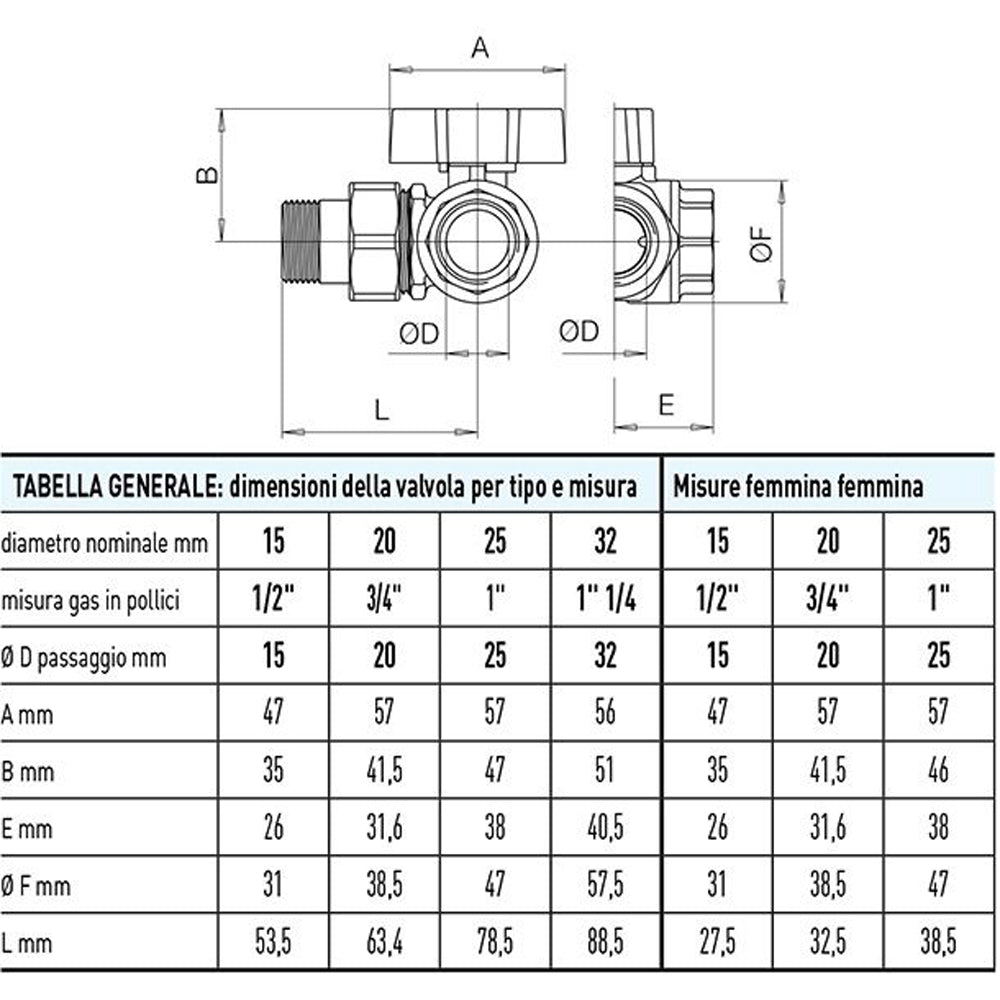

| Variant | L (cm) | l (cm) | H (cm) |
|---|---|---|---|
| 1/2" - PN40 | 7 | 5 | 5 |
| 3/4" - PN40 | 8 | 6 | 6 |
| 1" - PN40 | 10 | 7 | 7 |
| 1"1/4 - PN40 | 12 | 7 | 7 |
