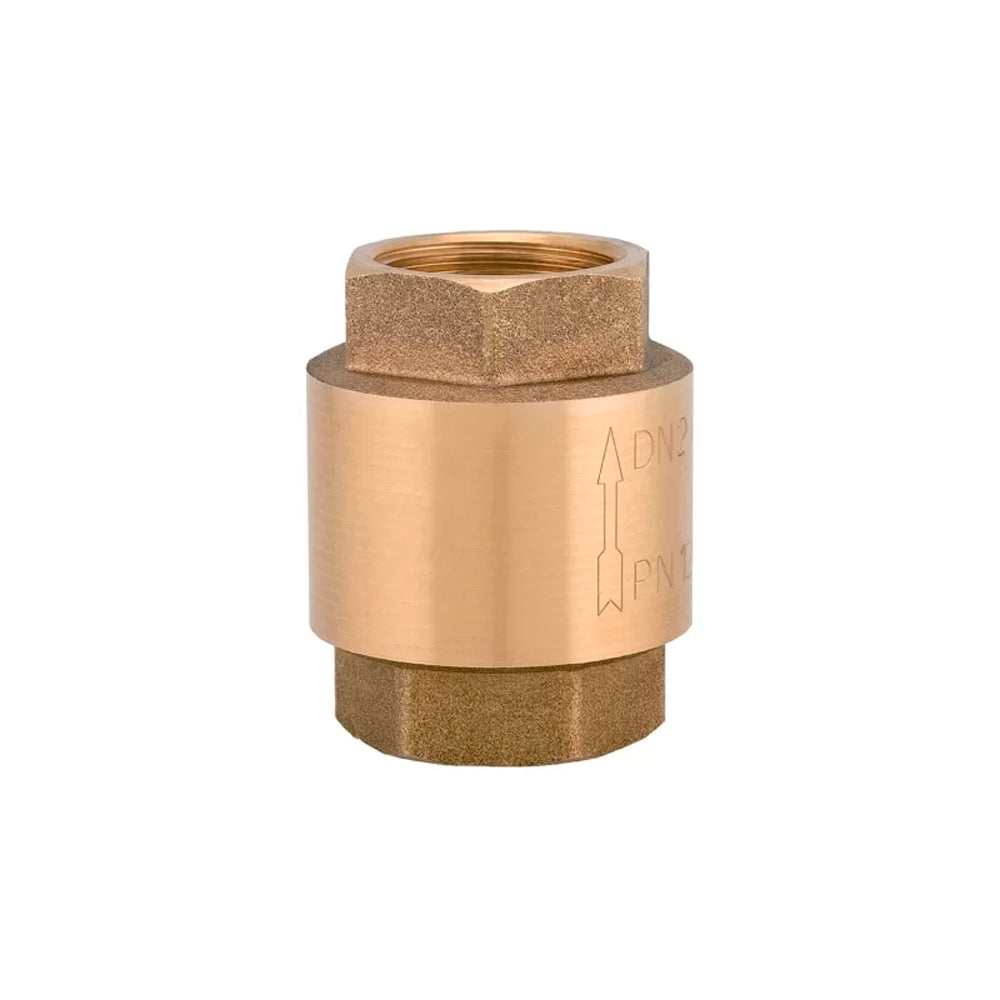

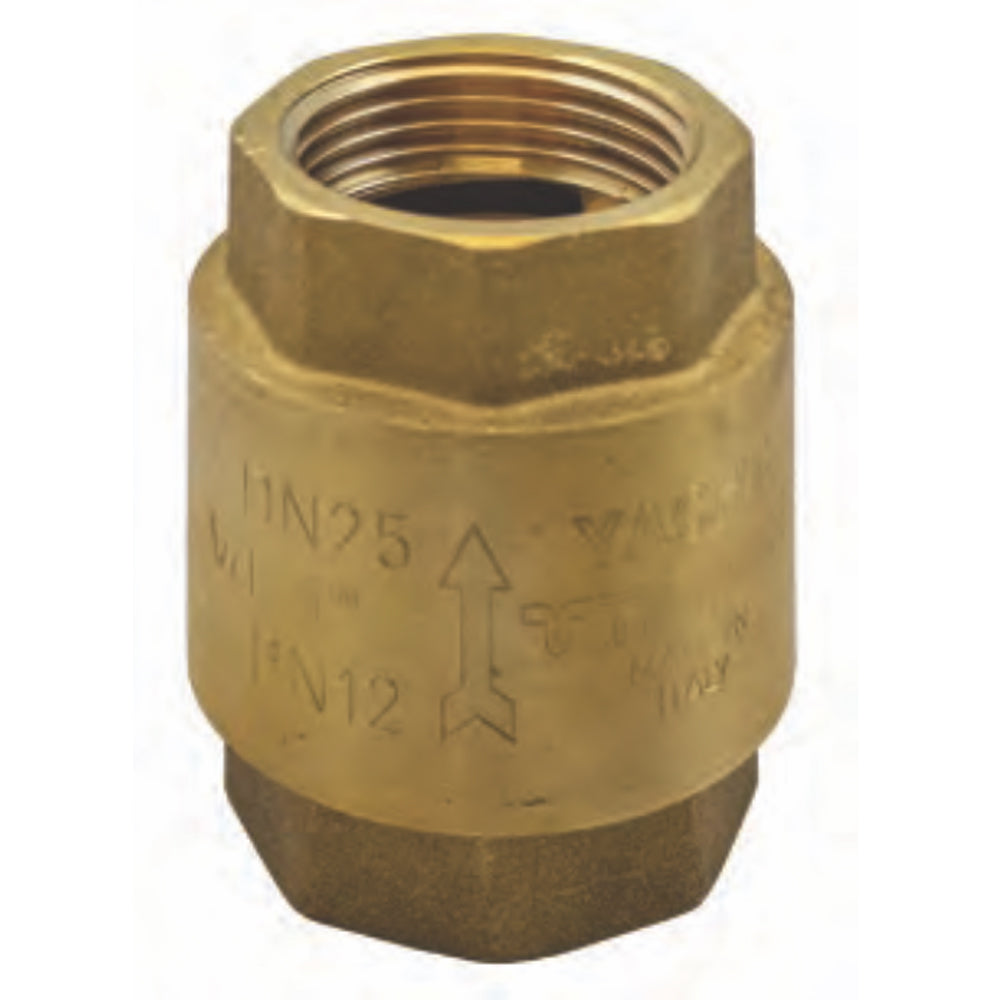

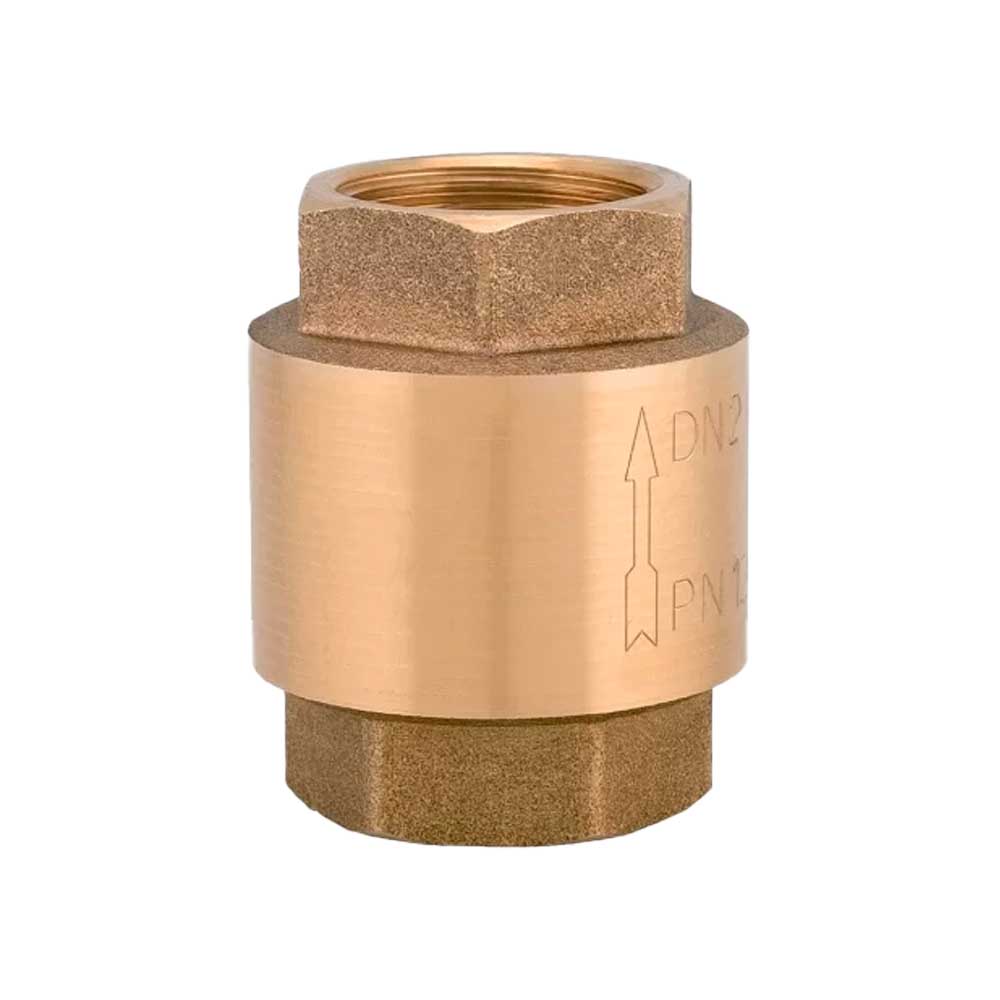

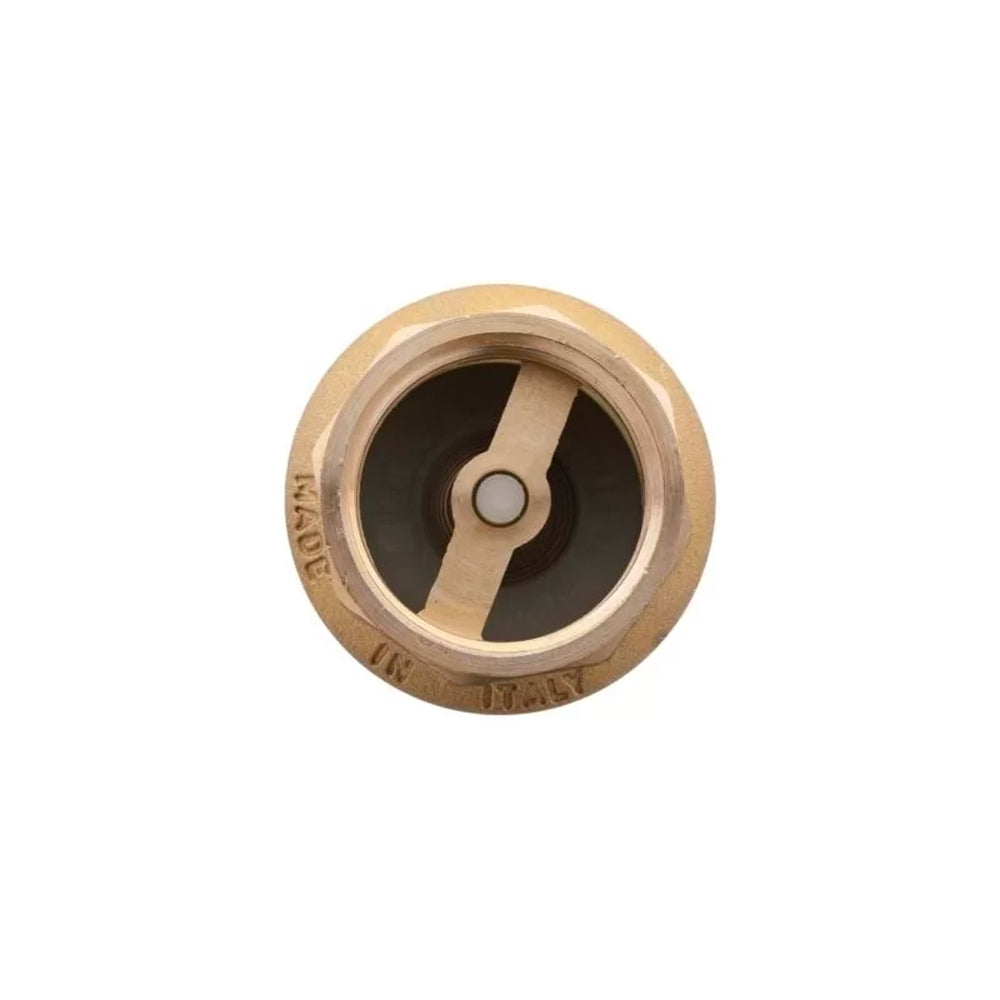

SPRING CHECK VALVE F/F WITH POLYAMIDE PLUG
Available in stock (325)
Check valve with polyamide disc made of:
-CW617N brass body, -PA disc, -PA gasket holder, -NBR gasket, -AISI 302 stainless steel spring.
ISO 228 threads.
Maximum operating temperature: +100 °C.
Minimum operating temperature: -20 °C (provided the fluid remains in liquid phase).
Maximum operating pressure: 12 bar (1/2" to 1"), 10 bar (1"1/4 to 2"), 8 bar (2"1/2 to 4").
Minimum opening pressure 25 mbar.
Fluid compatibility: Drinking water, water and glycol solutions (maximum glycol percentage 30%), oils, petroleum products, non-corrosive fluids.
| Variant | L (cm) | l (cm) | H (cm) |
|---|---|---|---|
| 1/2" DN15 - PN12 | 3.5 | 3.5 | 4.5 |
| 3/4" DN20 - PN12 | 4.5 | 4.5 | 5 |
| 1" DN25 - PN12 | 5 | 5 | 6 |
| 1"1/4 DN32 - PN10 | 6 | 6 | 6.5 |
| 1"1/2 DN40 - PN10 | 7 | 7 | 7.5 |
| 2" DN50 - PN10 | 9 | 9 | 8 |
| 2"1/2 DN65 - PN8 | 10 | 10 | 10 |
