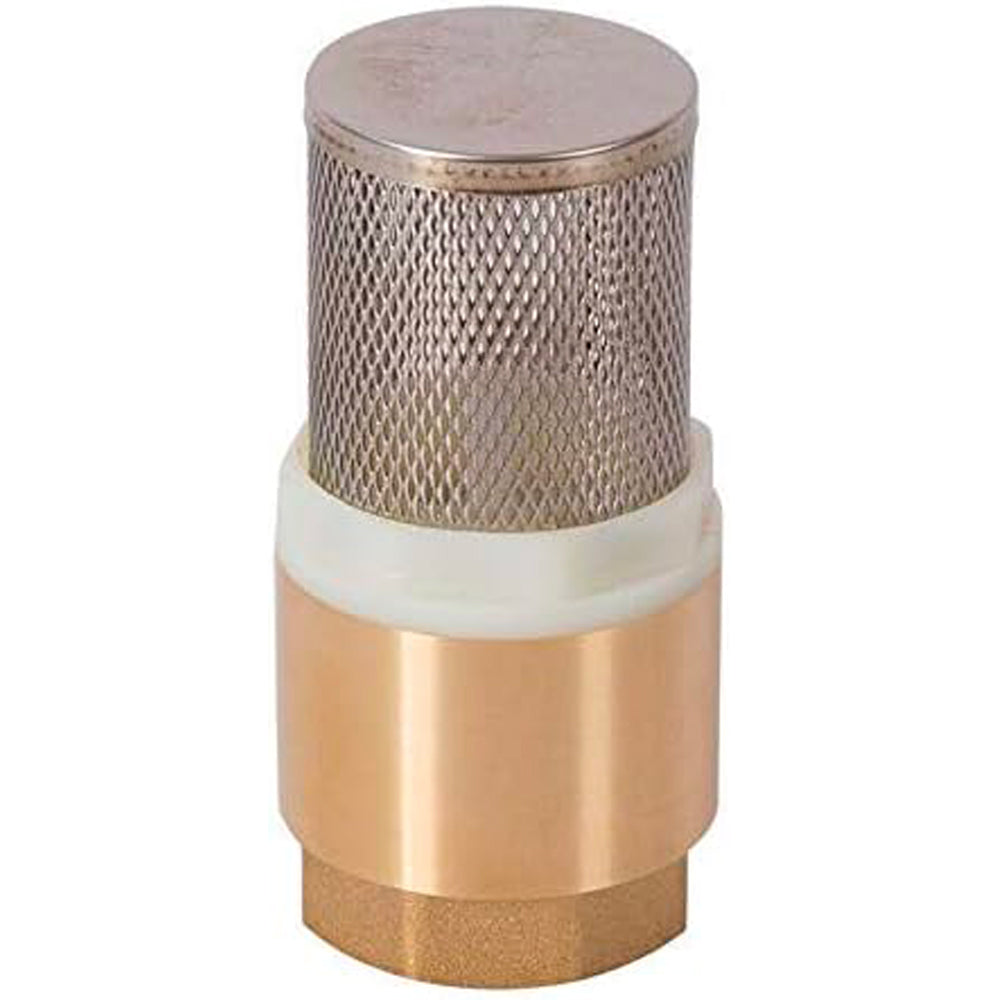

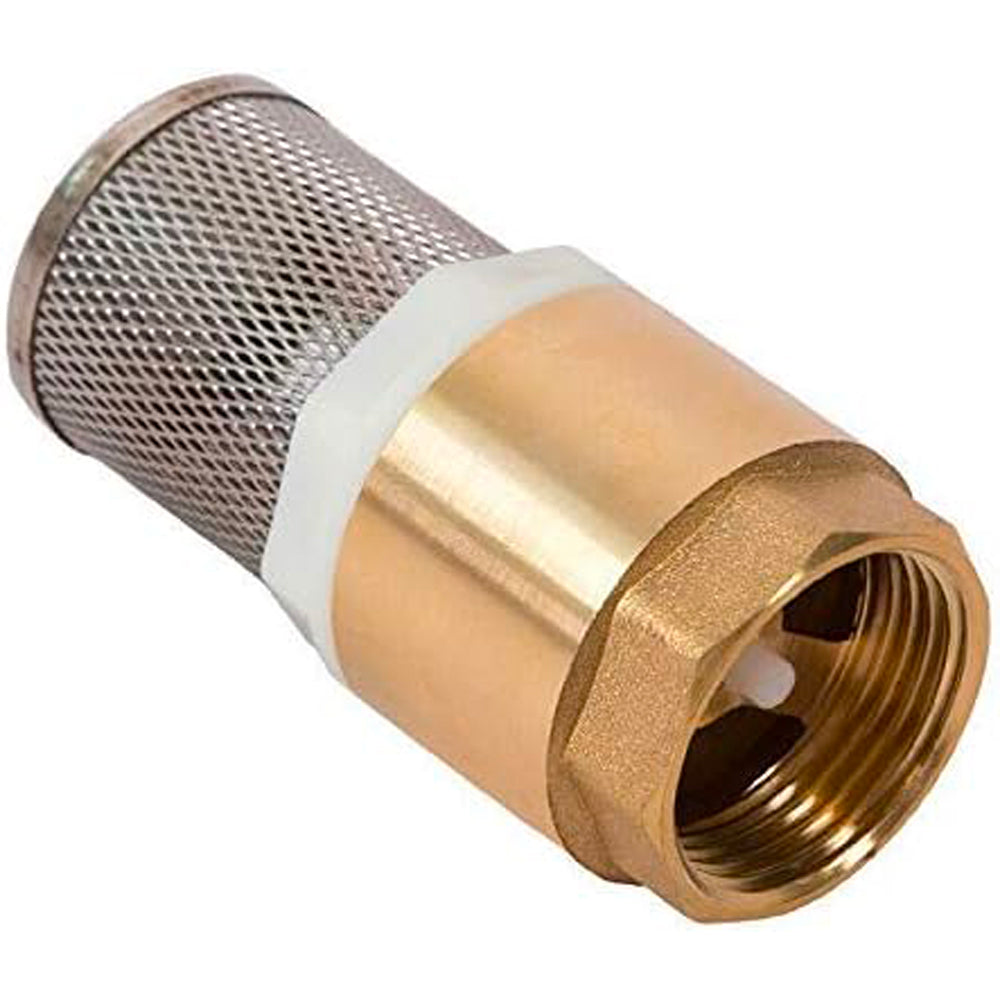

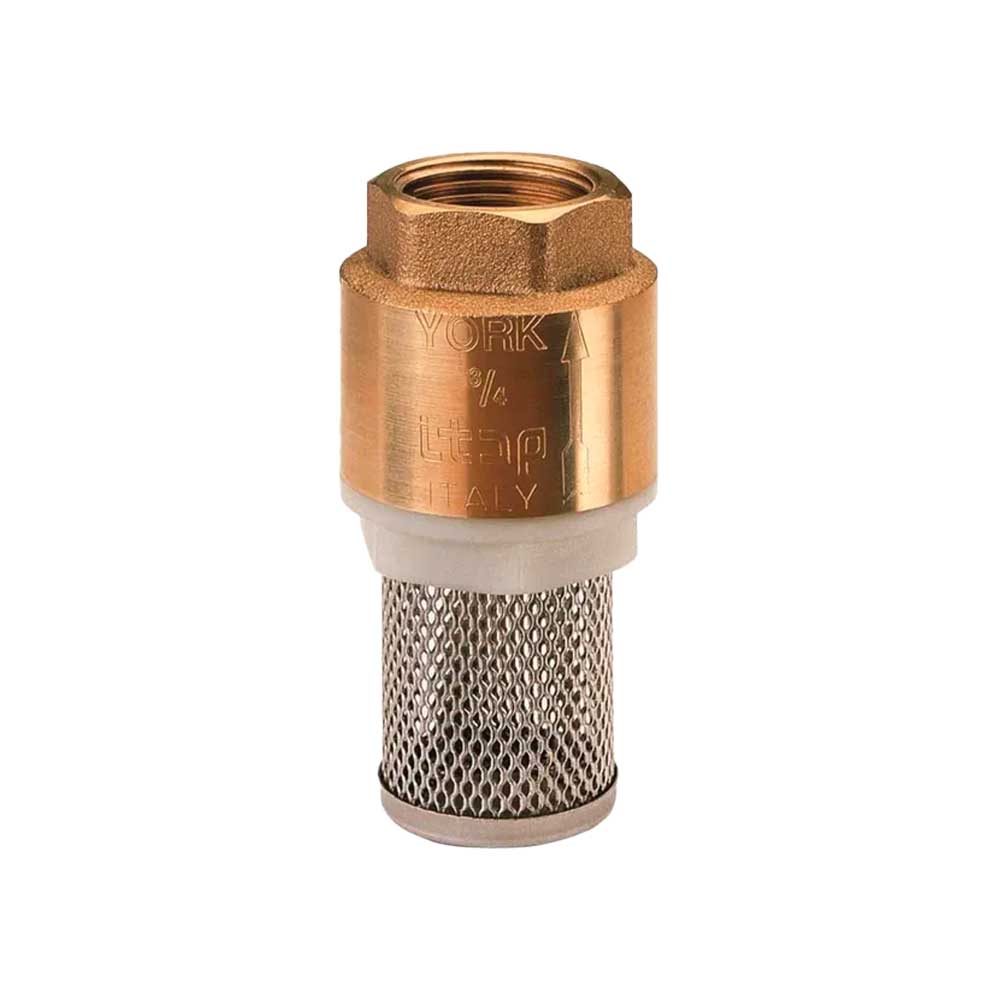

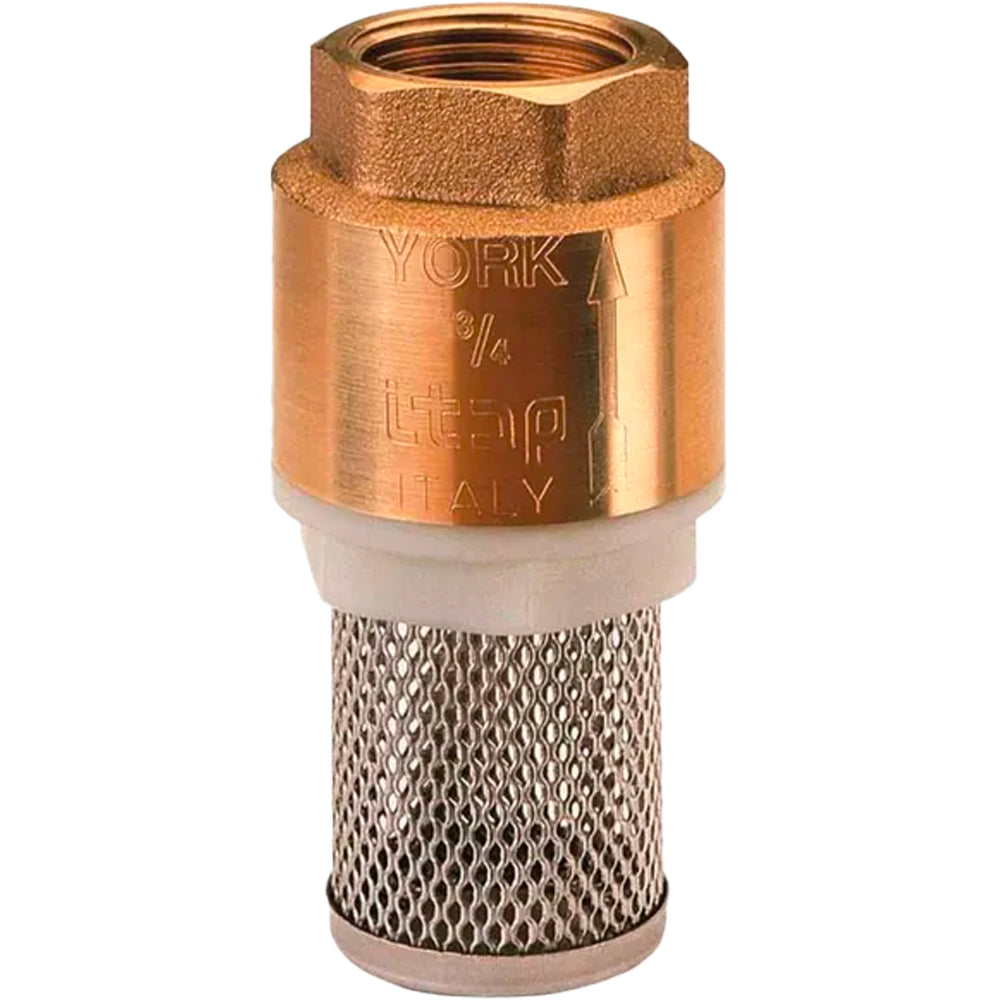

YACHT FEMALE CHECK VALVE WITH STAINLESS STEEL FILTER
Available in stock (13)
Non-return valve with polyamide shutter and filter made of: - CW617N brass body; - PA shutter; - PA gasket retainer; - NBR gasket; - AISI 302 stainless steel spring; - AISI 304 stainless steel + PA-GF filter; - ISO 228 threads.
Maximum operating temperature: + 100 °C.
Minimum operating temperature: -20 °C (provided the fluid remains in liquid phase).
Maximum operating pressure: 12 bar (1/2" to 1"), 10 bar (1"1/4 to 2").
Filter mesh filtration degree: 1000 µm
| Variant | L (cm) | l (cm) | H (cm) |
|---|---|---|---|
| 1/2" DN15 | 3 | 3 | 6.5 |
| 3/4" DN20 | 4 | 4 | 8 |
| 1" DN25 | 5 | 5 | 9.5 |
| 1"1/4 DN32 | 6 | 6 | 11 |
| 1"1/2 DN40 | 7 | 7 | 13 |
| 2" DN50 | 9 | 9 | 15 |
