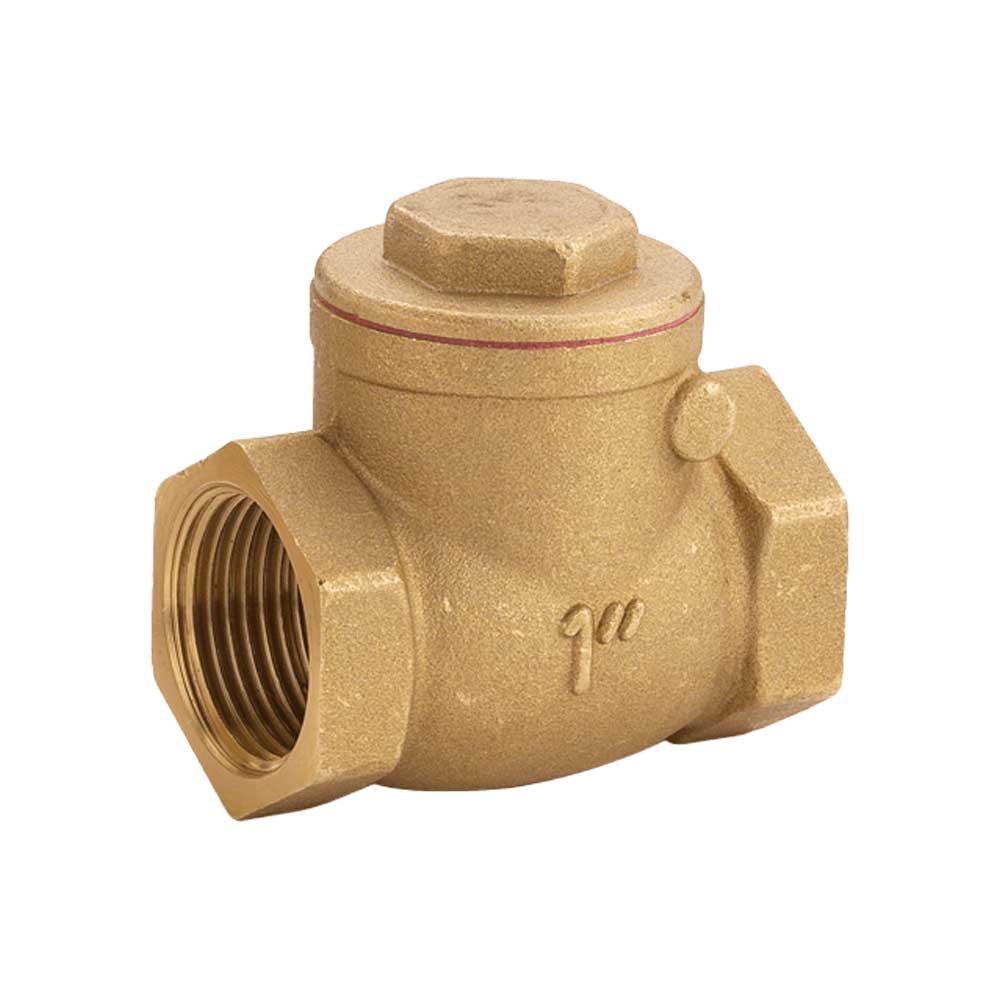

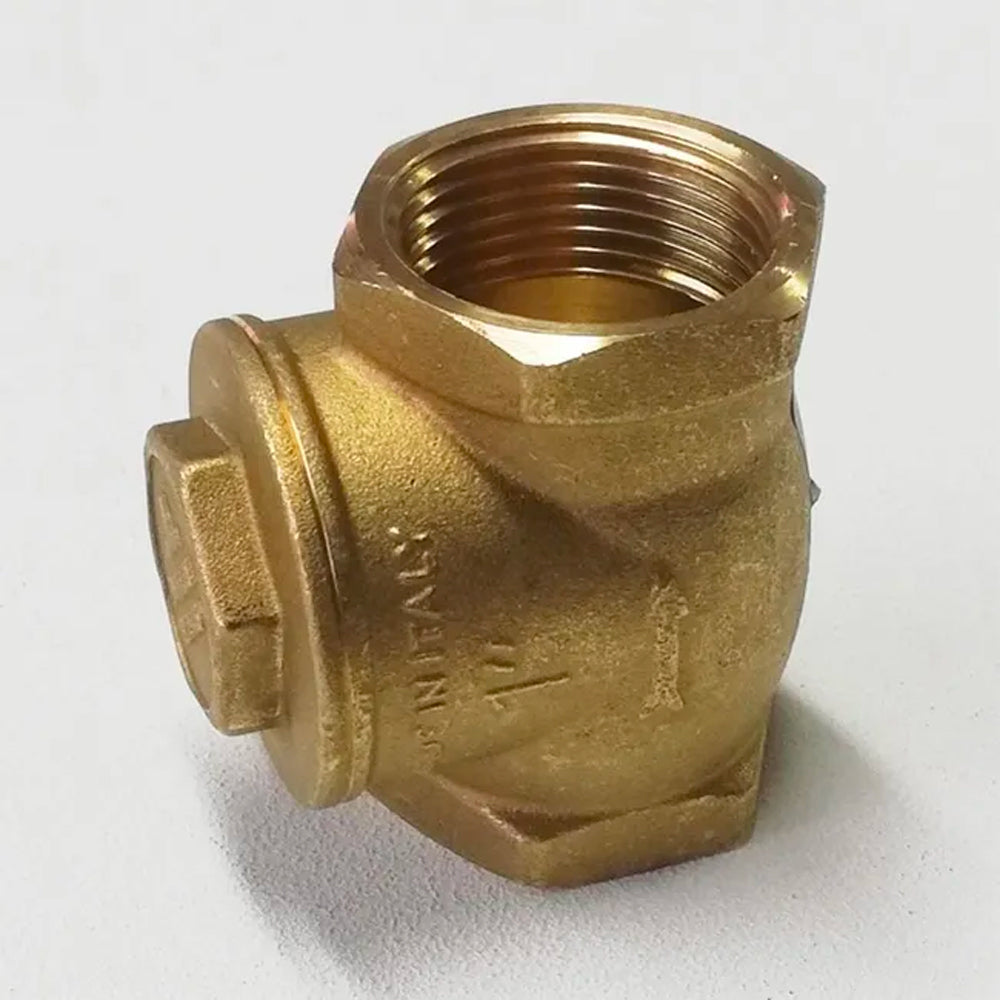

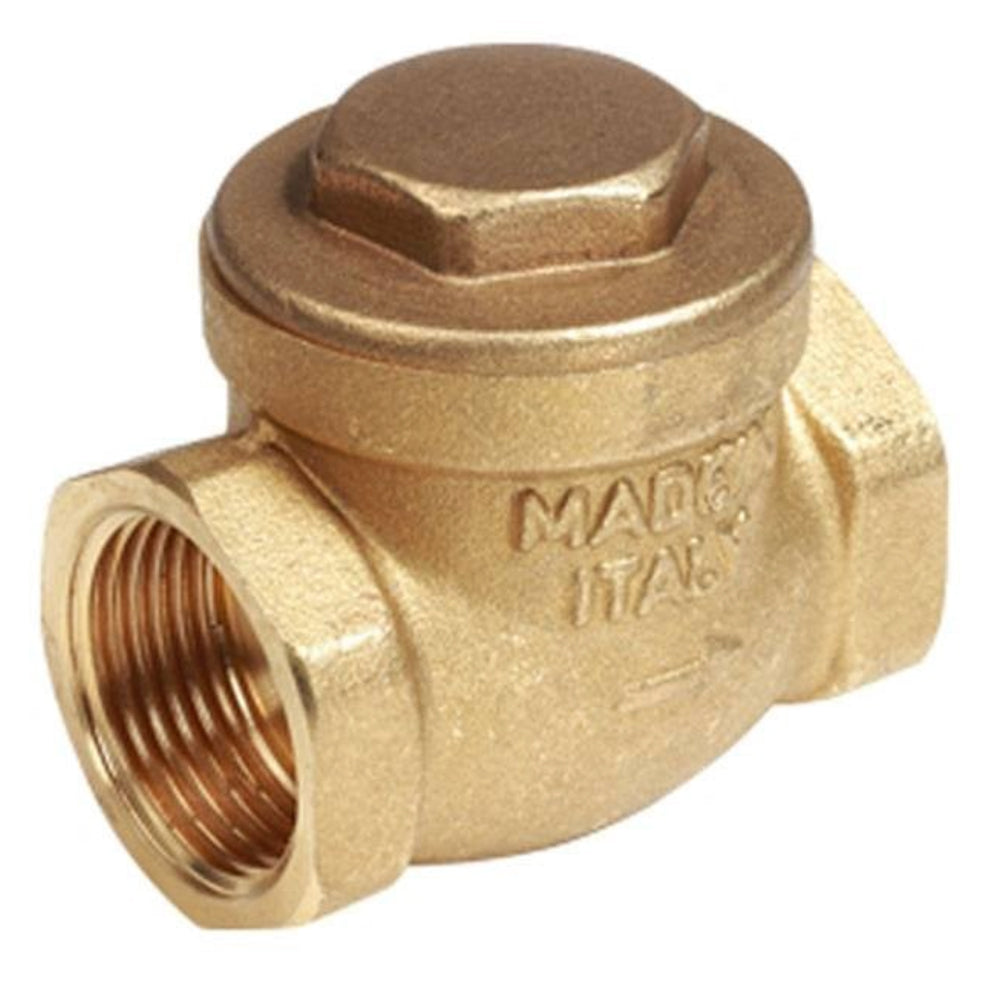

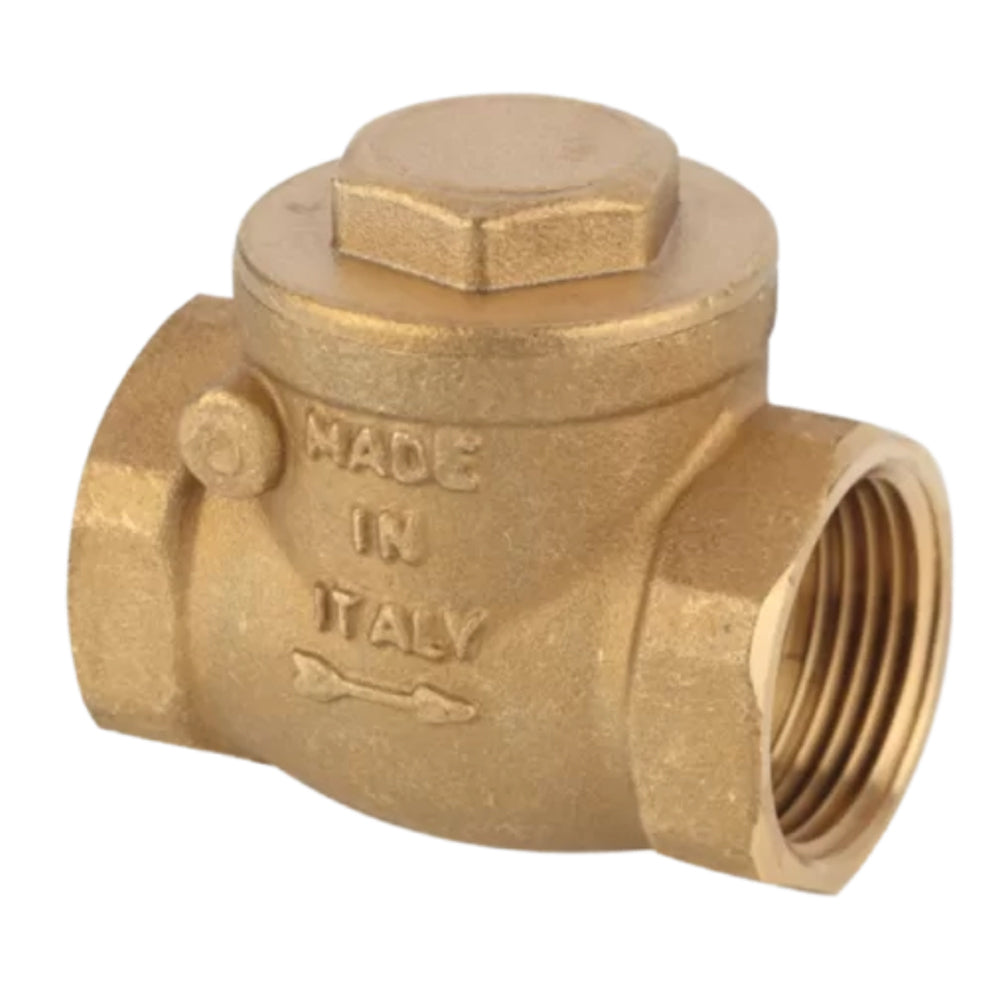

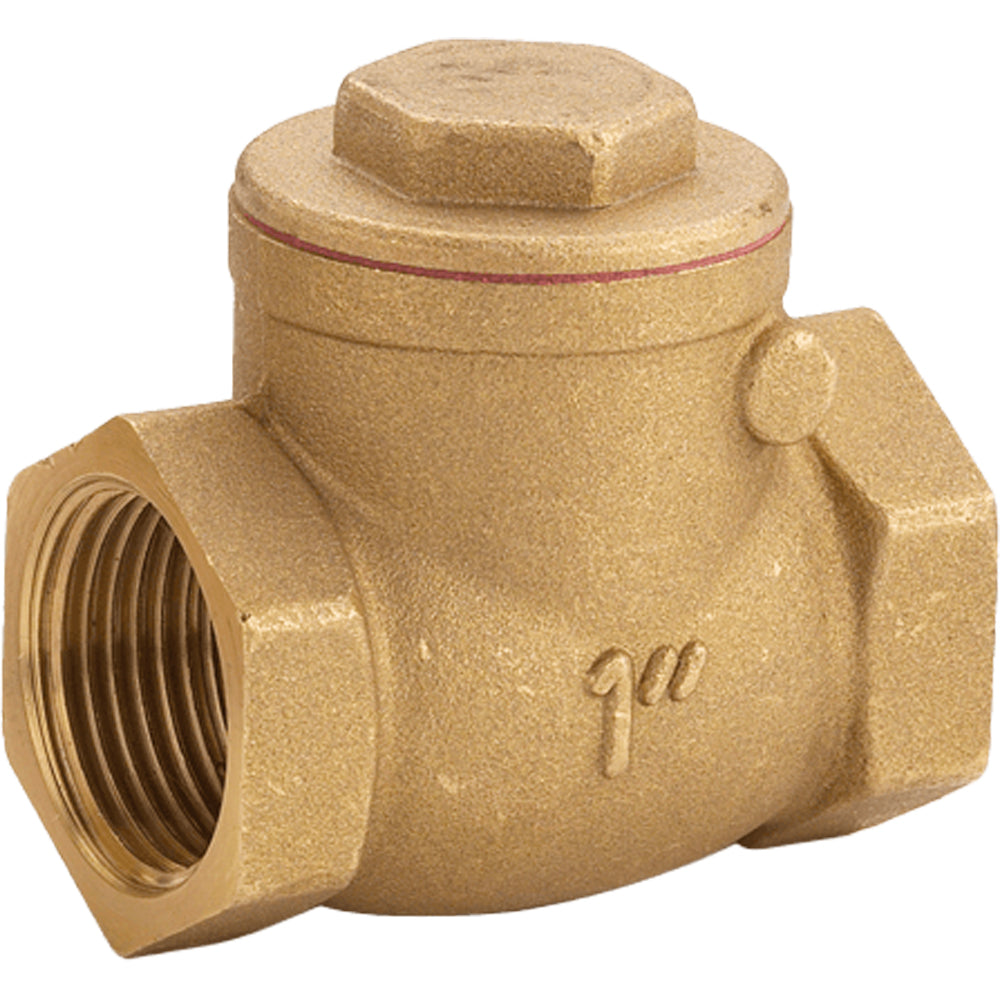

FULL FEMALE/FEMALE SWING CHECK VALVE WITH BRASS PLUG AND GASKET
Available in stock (177)
FULL female/female ISO228 clapet valve, with brass obturator and gasket.
The valve must be installed horizontally with the cap facing upwards.
It is suitable for all types of domestic and commercial hydraulic systems, industrial and agricultural applications, heating and sanitary systems, compressed air, olive groves, petroleum products, generally with any non-corrosive fluid.
Max operating temperature: 100°C.
Min operating temperature: -20°C.
CW617N - EN12165 brass body.
| Variant | L (cm) | W (cm) | H (cm) |
|---|---|---|---|
| 1/2" DN15 - PN16 | 4.5 | 3.5 | 4 |
| 3/4" DN20 - PN16 | 5.5 | 3.5 | 5.5 |
| 1" DN25 - PN16 | 6.5 | 4.5 | 5.5 |
| 1"1/4 DN32 - PN16 | 7.5 | 5 | 6.5 |
| 1"1/2 DN40 - PN16 | 8.5 | 5.5 | 7.5 |
| 2" DN50 - PN16 | 9.5 | 7 | 9 |
| 2"1/2 DN65 - PN8 | 11 | 9 | 11 |
| 3" DN80 - PN8 | 14 | 10.5 | 13 |
| 4" DN100 - PN8 | 16 | 14 | 18 |
