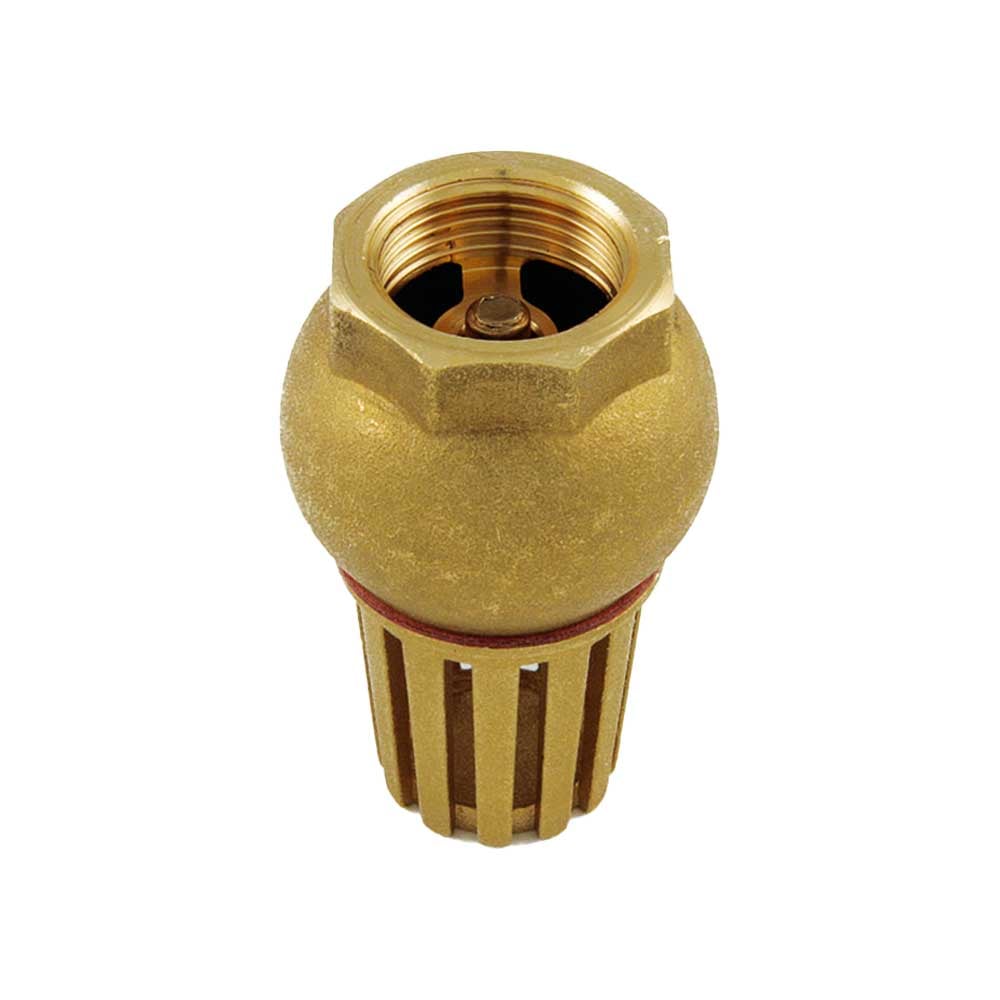

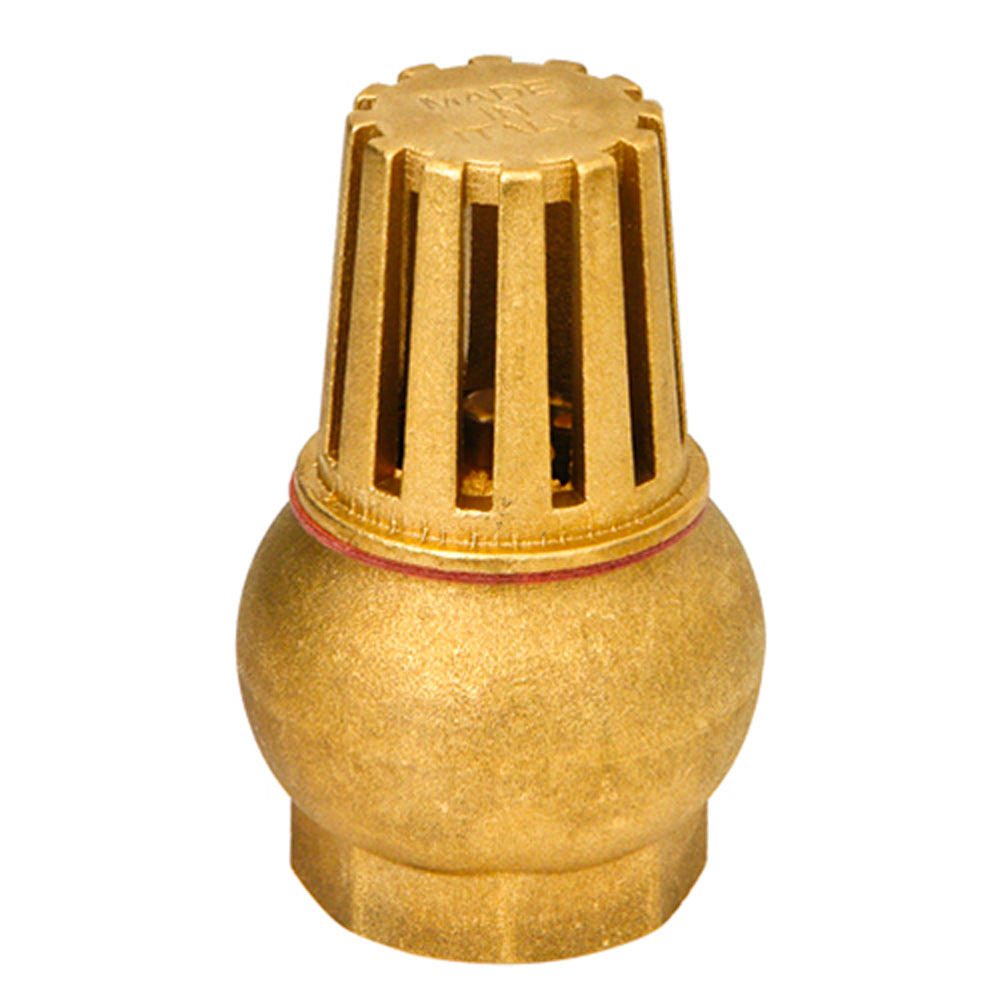

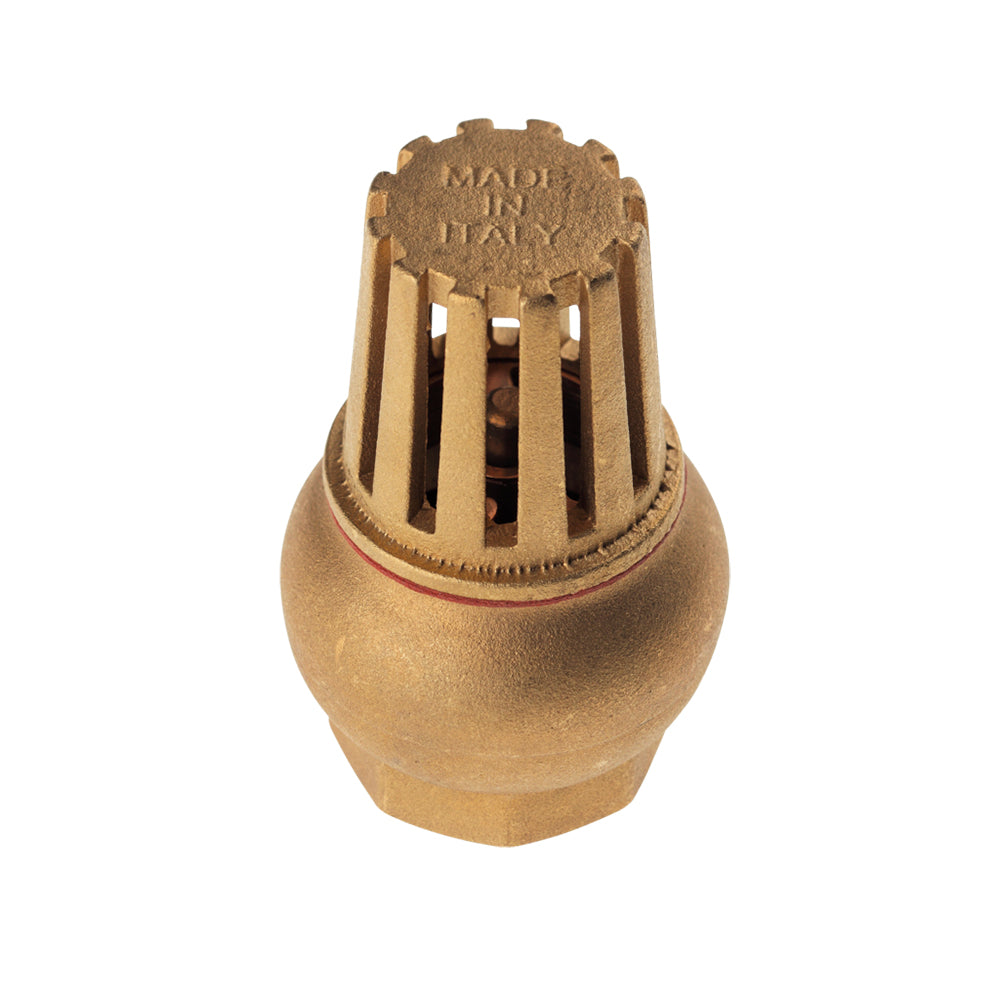

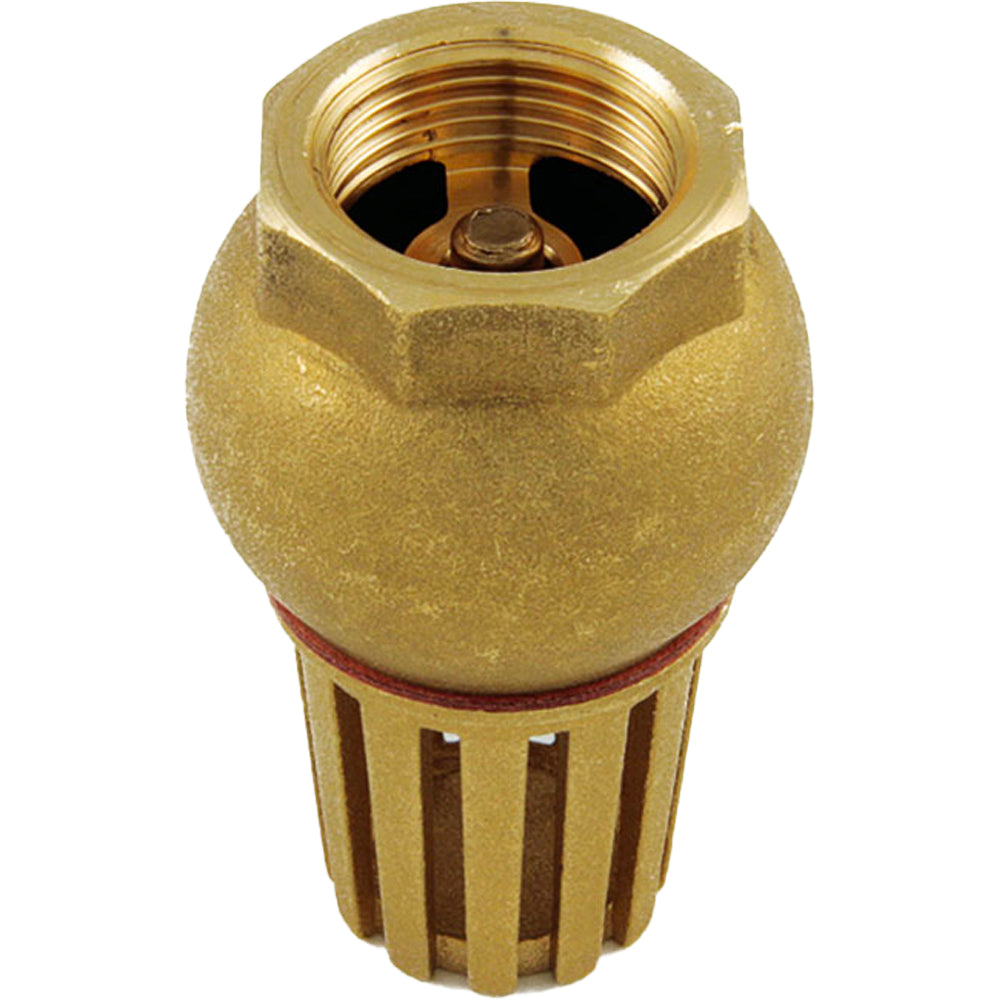

BRASS GLOBE FOOT VALVE FEMALE WITH POPPET WITHOUT SPRING
Available in stock (16)
CW617N brass foot valve with ISO228 female threaded ends and springless disc.
Maximum operating temperature 60°C.
Minimum operating temperature -20°C.
Maximum operating pressure 10 bar.
The valve must be installed in a vertical position to allow flow only in an upward direction.
Suitable for installations on pumps, in wells and agricultural systems.
Maximum operating temperature: 60°C
Minimum operating temperature: -20°C
Thread: Female ISO 228
| Variant | L (cm) | l (cm) | H (cm) |
|---|---|---|---|
| 1/2" - PN10 | 4 | 4 | 6.5 |
| 3/4" - PN10 | 4.5 | 4.5 | 7.5 |
| 1" - PN10 | 5 | 5 | 8 |
| 1"1/4 - PN8 | 6 | 6 | 9.5 |
| 1"1/2 - PN8 | 7 | 7 | 10 |
| 2" - PN8 | 8 | 8 | 12 |
| 2"1/2 - PN6 | 10 | 10 | 14 |
| 3" - PN6 | 12 | 12 | 15 |
| 4" - PN6 | 15 | 15 | 19 |
